Bare MMO Tubular Anode

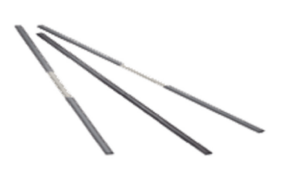

MMB™-T Bare MMO Tubular Anode

The MATCOR MMB-Tubular MMO Anode is suitable for many cathodic protection applications including:

  • Salt, Fresh or Brackish WaterMMO Tubular Anode
  • Shallow Ground Beds
  • Deep Well Anodes
  • Marine Applications
  • Internal Applications
  • Tank Bottoms

The tubular MMO anode can be factory assembled with lead cable to your specifications. The design life of the anode varies with operating current in a variety of applications from seawater to soil.  MATCOR MMB™-Tubular Anodes are available in a number of diameters, lengths, current carrying capacities and life ratings.

MATCOR Model CodeLengthAnode Rating for
20 yr design
coke/fresh water
Anode Rating for
20 yr design
seawater
0.035” (0.9mm)
Wall Thickness
Titanium Tubular
MMO Anode
MMB-1-19.7T19.7”
(0.5 m)
4 amps12 amps
MMB-1-19.7TXH19.7”
(0.5 m)
6 amps18 amps
MMB-1-39.4T39.37”
(1 m)
8 amps24 amps
MMB-1-39.4T-XH39.37”
(1 m)
12 amps36 amps

Additional output versions may be available utilizing different mixed metal oxide coating loading. We can provide 0.75” and 1.25” tubes on a special order basis where needed.

MATCOR’s mission is to solve your corrosion problems. In addition to our broad range of proprietary corrosion prevention products, we are ready to assist with your corrosion engineering and field service needs, including design, manufacturing, installation, commissioning and ongoing maintenance, as well as full turnkey solutions.
